Eye tracking for all creators.
Let your heart speak through your eyes.
FocusRay is an affordable, high-precision face tracking device for those who want to immerse themselves in virtual worlds.
MSRP:  120 USD (tax included) FocusRay Plus: 175 USD (tax included)
FocusRay Extension: 120.00 USD (tax included)
FocusRay Plus: 175.00 USD (tax included)
The FocusRay Extension consists of a small camera module and a core module.
This is an eye-tracking device for VR social networking services.
Even people with poor eyesight can use it, and without any special devices.
It was created as an external eye-tracking device with excellent expandability and cost performance.
You no longer need to buy new goggles or multiple trackers.
Please enjoy the all-in-one FocusRay series.
Easy to attach and detach with a click
Prescription lenses are available.
No matter how bad your eyesight is or what prescription lenses you use.
By employing a different magnetic adsorption method* than conventional methods, it can be used without any problems even by those who use prescription lenses attached to VR headset lenses. No modification of the lenses is required.

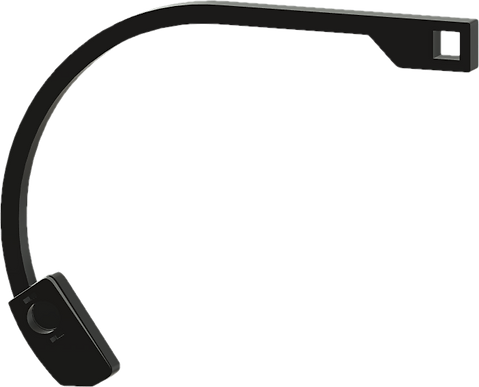

The camera unit is arm-type and can move left and right.

*: Patent application number: JP 2026-61377
Processing and photography are separate.
Easy to attach/detach and distribute
Modular structure makes it easier and more comfortable.
The heavy core module can be attached to the back of clothing or a head strap.
The camera module is easily removable, making it easy to clean or swap with another device.
Adding a new device
Expansion port for even more convenience.
The FocusRay Extension does not interfere with power supply to other devices.
The core module is equipped with a USB Type-C port, so it can also power the mouth-tracking FocusRay and other devices.
One device, multiple headsets
Just buy a cheap stand.
No need to buy multiple devices.
Even if you have multiple VR headsets, you don't need to buy multiple trackers.
You can use it for multiple devices by simply purchasing an inexpensive mounting base.
Compatible with 8 major VR headsets
There's no need to give up.
We will start with the following eight VR headset models, with more to be added in the future.
Meta Quest series
Meta Quest 2, 3s, 3
PICO
PICO4 Ultra
Valve
Valve Index
HTC
HTC VIVE / VIVE Pro 2
Pimax
Pimax CrystalLight
*: These are VR headset models supported by our company, and any VR headset of any shape can be used as long as there is mounting space.
Specifications
Product Features
Connection Method
power supply
weight
Size
Camera
Low Light Support
Fixed method
Fixed method
Wireless connectivity via two Wi-Fi systems: 5GHz band and 2.4GHz band.
Up to 6 hours* of battery power
Camera module: 25g
Core module: 60g
Camera module: 32mm wide x 15mm high x 3mm deep * 2
Core module: 55mm (width) x 72mm (height) x 12mm (depth)
Dual-lens system (left and right): Maximum camera performance: 320 x 240, maximum 120fps
Effective camera performance: 640 x 480, up to 30fps
Built-in infrared illuminator
Special magnetic attachment system that allows the use of vision correction lenses**
Features: 1 dedicated power supply external expansion port (USB Type-C), 2 dedicated communication/power supply external expansion ports (USB Type-C) * 4
*: Equipped with a 2000mAh lithium polymer battery. Continuous power supply via wired connection is also possible. If power is supplied to other devices via the expansion port, the continuous operating time will be shorter.
*2: When the arm is extended to its maximum length. This may change in the future.
*3: Patent application number: JP 2026-61377
*4: Of the external expansion ports dedicated to communication and power supply, one port is an input terminal. When communicating with audio devices from a VR headset, the VR headset is connected to the input terminal and the audio device is connected to the output terminal.

This product will be sold in Japan, the United States, Australia, various European countries, the United Kingdom, Hong Kong, and other countries. We will continue to work to expand our sales partners and market reach, including obtaining additional legal certifications.
This product is for indoor use only. Outdoor use of the 5.2GHz/5.3GHz band (W52/W53) is prohibited by the Radio Law (except where permitted by law).
Accessories
Introducing FocusRay Extension accessories, which can be purchased at any time from our store or through our sales partners.
Dedicated fixing base (AONXA-017)
Suggested retail price: 14.00 USD (tax included)
USB cable (AONXA-001-W)
Suggested retail price: 3.00 USD (tax included)
商品バリエーション
FocusRay is currently running a campaign on Kickstarter. Back us and get a FocusRay at a limited price!
FocusRay Extension
Contents: 1 FocusRay Extension
From 120 USD (tax included)
FocusRay Plus
Contents: 1 FocusRay Extension
1 FocusRay wireless model
From 175 USD (tax included)
EarlyAccess on Kickstarter
The FocusRay Extension will be available at a special price as a stretch goal for those who have supported our ongoing FocusRay face tracking device campaign.
If you purchase through Kickstarter, you cannot buy the FocusRay Extension separately.
FocusRay Plus general release
From 175 USD (tax included)
When purchasing FocusRay and FocusRay Extension separately through general sale
About 214 USD (tax included)
FocusRay and
When purchasing FocusRay Extension
About 160 USD (tax included)
Purchase here
tq0sfld-kickstarter-logo-green.avif
*For the FocusRay wireless model (AONXV-001-W). For the FocusRay wired model (AONXV-001-WR), the limited-time price is a total of 19,800 yen (tax included).
Please check here for Kickstarter-exclusive pricing and sales methods .
Review&Demonstration
ET-MM-FAQ
FAQ
FocusRay series official discord server
We provide product support information, announcements from AoharuNEXT, FAQs between users, communication, and more.
